Cisco Voice ATA Setup

STEP 1

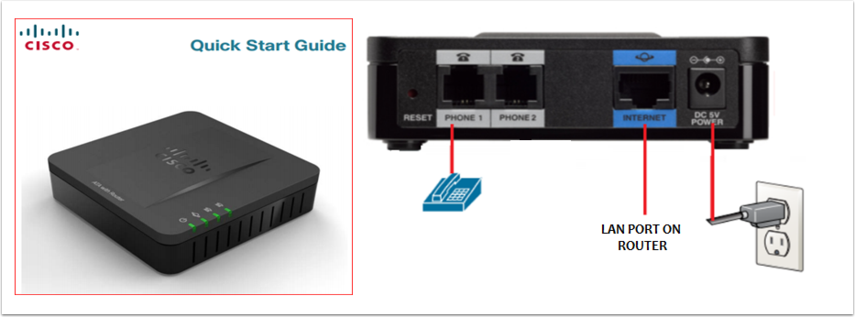

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack

dial:   **** (four asterisks)

then dial:  110 #

and you will be told the IP address of your device (e.g. 192.168.0.100).

STEP 2

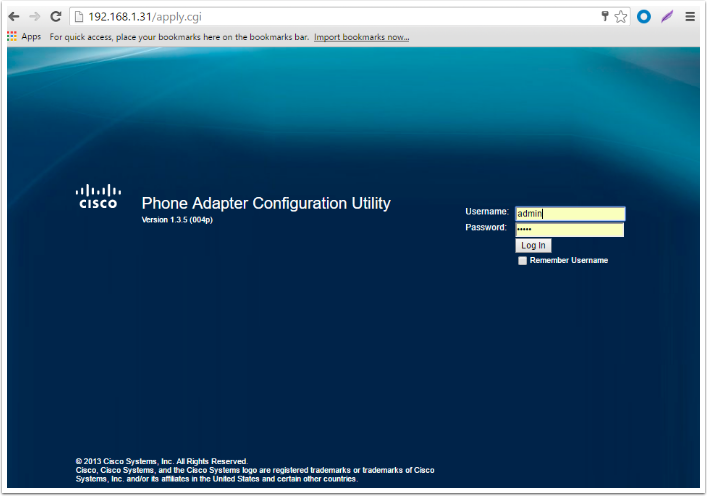

Enter the IP address for the device into your browser

Username: admin

Password: admin

Click : Log In

Step 3

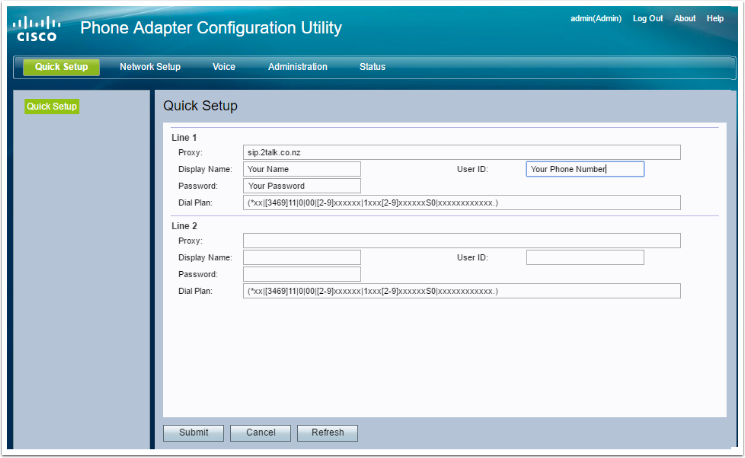

Proxy:                   sip.stuff-fibre.co.nz

Display Name:   Enter your full name, this will show up as part of your caller Id.

User ID:          Enter the phone number provided by Stuff-Fibre.

Password:          Enter the password provided by Stuff-Fibre.

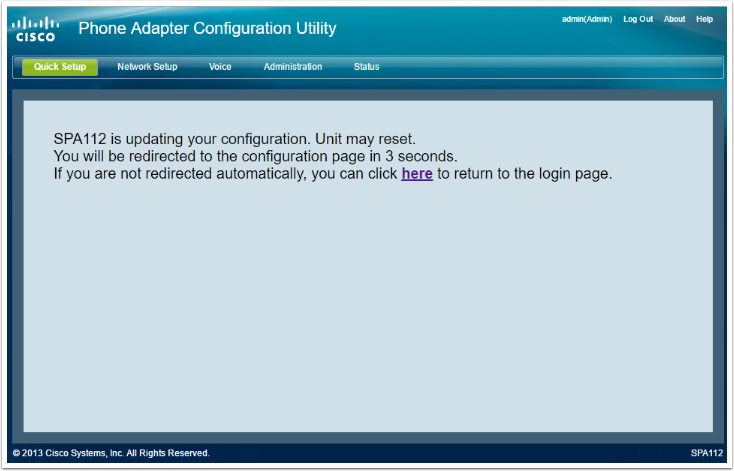

Click "Submit" at the bottom to save your changes.

STEP 5

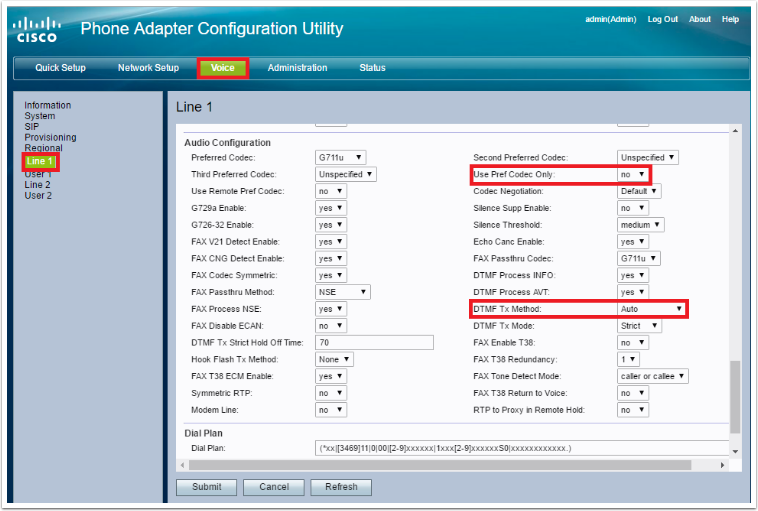

From the main menu, click Voice, then click Line 1.

Make sure “Use Pref Codec Only” is set to NO.

Make sure “DTMF Tx Method” is set to AUTO

Click "Submit" at the bottom to save your changes.
